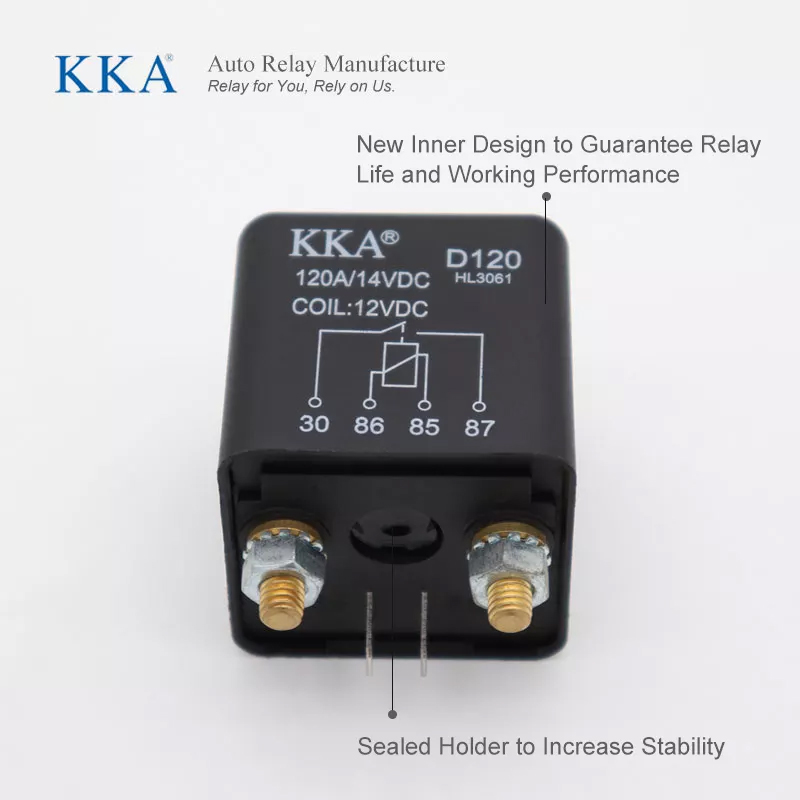

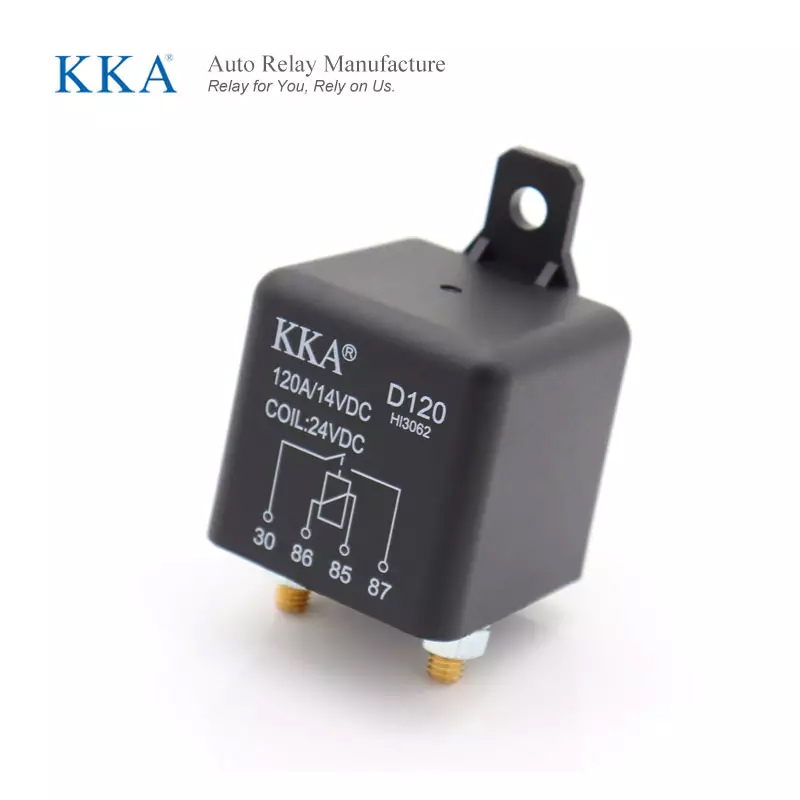

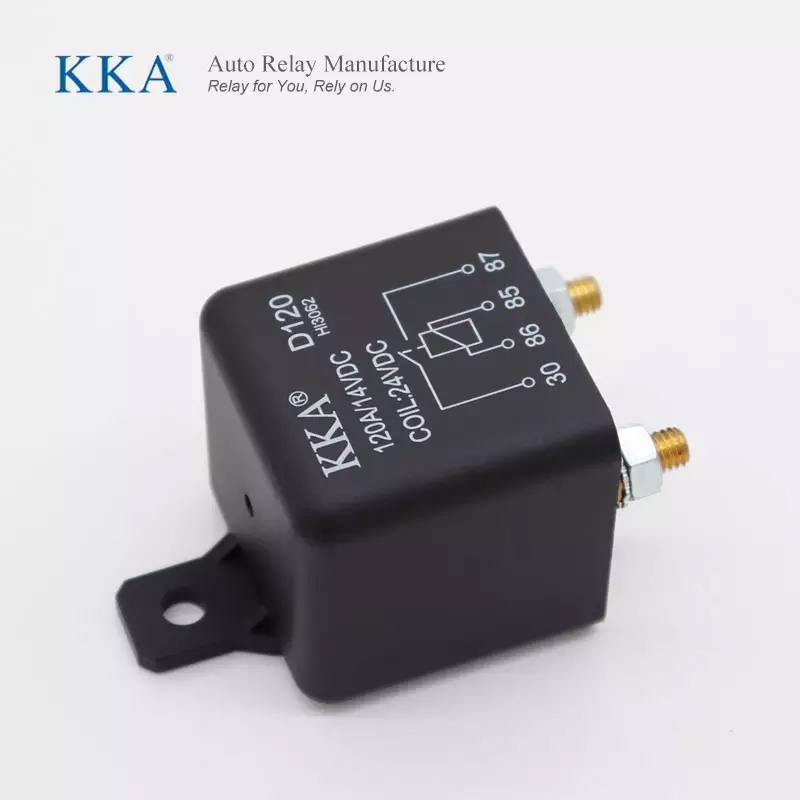

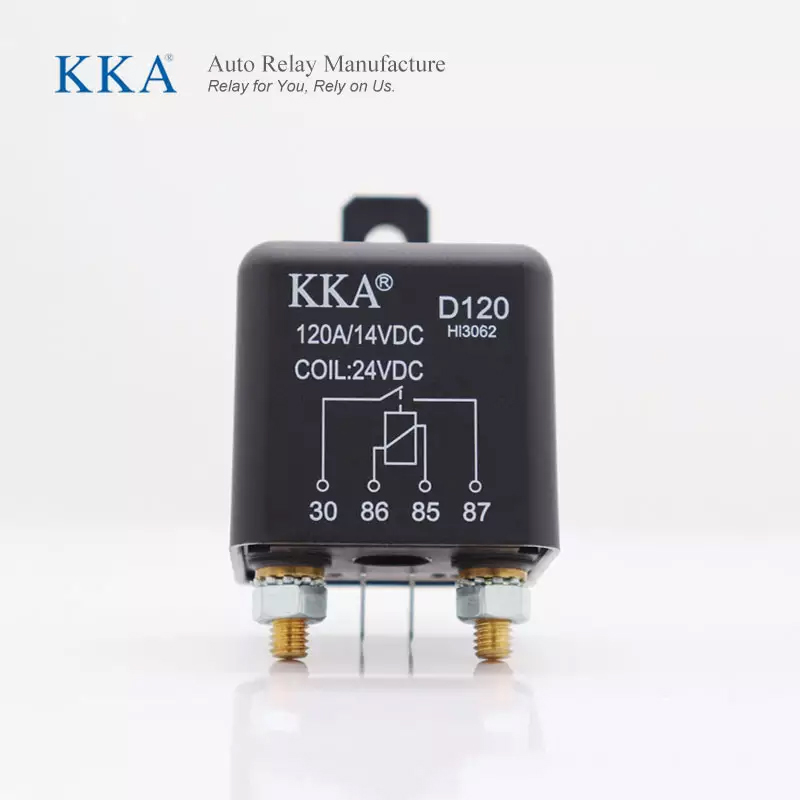

KKA-D120 120A Relay
KKA-D120 120A Relay
KKA-D120 120A Relay
KKA-D120 120A Relay
KKA-D120 120A Relay
KKA-D120 120A Relay

Features

  • up to 120A switching load
  • over 50000 cycles electrical life
  • strong and stable magnetic performance
  • SPST-NO contact form
Make an inquiry
Data Sheet

Product Description

COIL RATING

Coil Volt.

12VDC/24VDC (Rated)

15.6VDC/31.2VDC (Max.)

Coil Power

1.8W/2.4W/4.8W

Coil Resistance

60Ω/240Ω (Q±10%)

Pickup Volt.

7.8VDC/15.6 VDC (max.)

Release Vol.

1.2VDC/2.4 VDC (min.)

Operate Time

≤10ms

Release Time

≤5ms


CONTACT RATING

Contact Form

1H(SPSTNO)

Contact material

AgSnO2

Contact Load (resistive)

120A/14VDC

Max. Switching Voltage

40VDC

Max. Switching Current

120A

Max. Switching Power

1680W

Contact Resistance

≤30mΩ                        Item 4.12 of IEC 61810-7

Electrical Endurance

1*105                           Item 4.30 of TEC 61810-7

Mechanical Endurance

1*106                           Item 4.31 of TEC 61810-7
