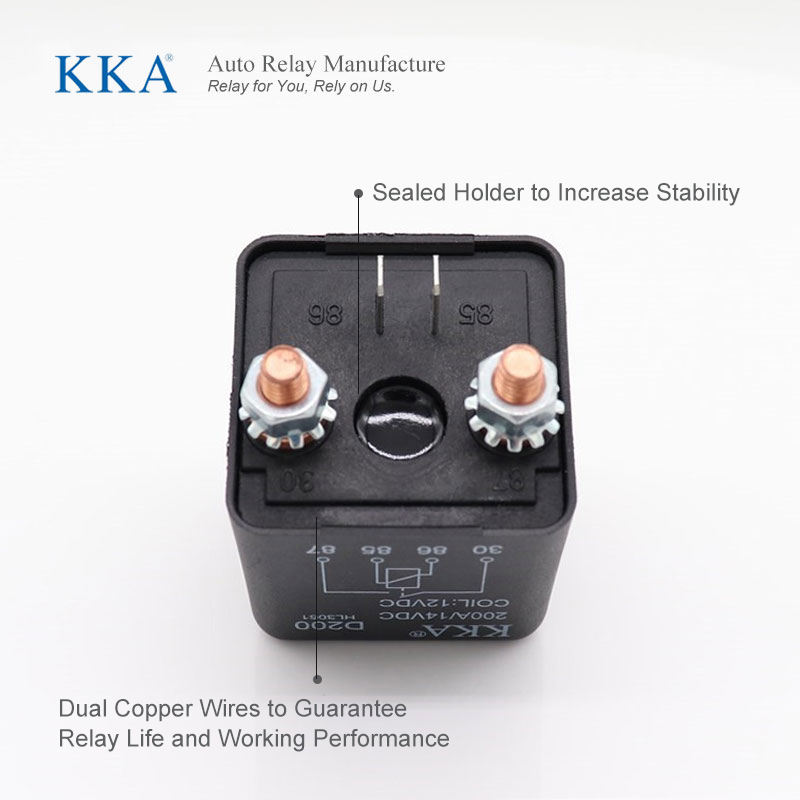

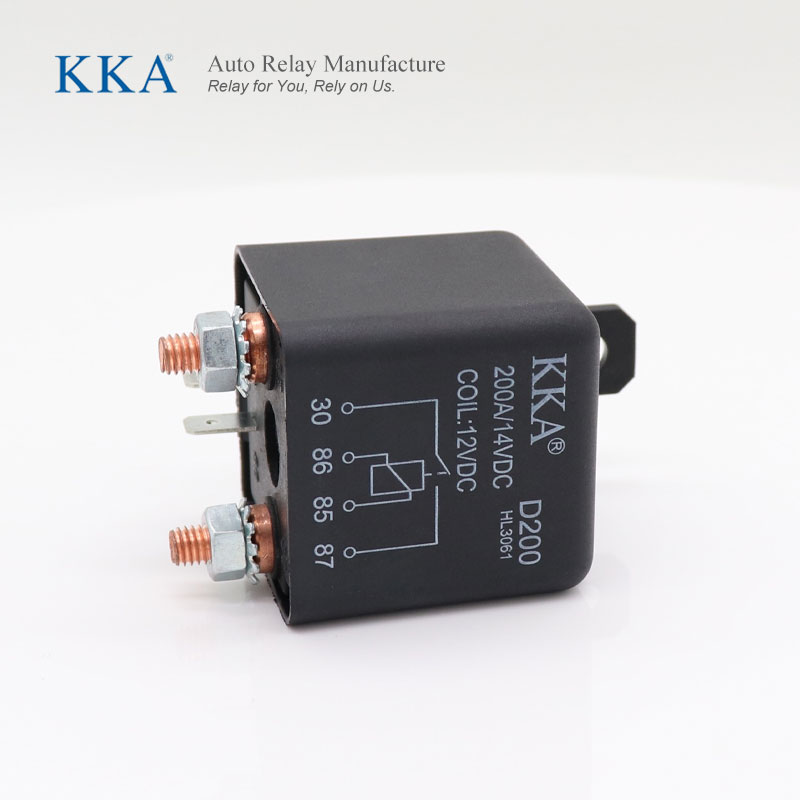

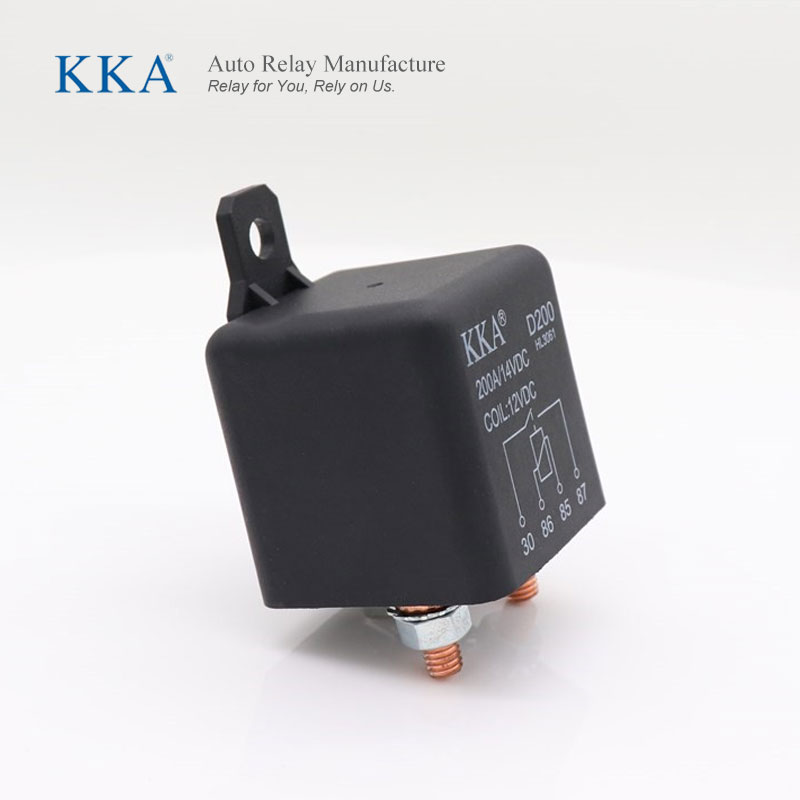

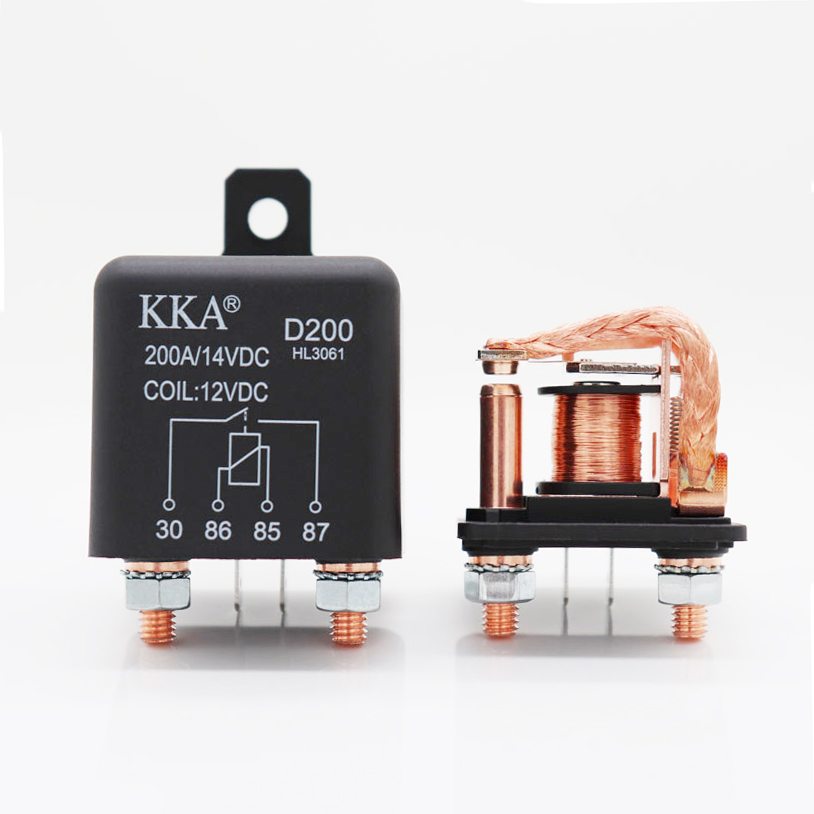

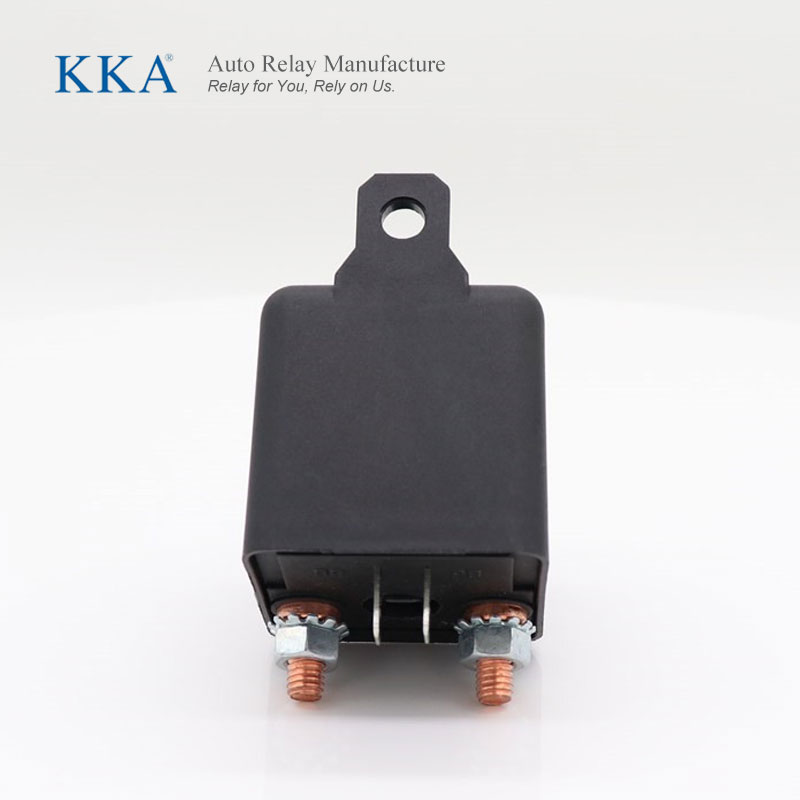

200A Relay
200A Relay
200A Relay
200A Relay
200A Relay
200A Relay
200A Relay

Features



  • 24hrs 200A switching load/180A long time working
  • normal open working form
  • strong magnetic force, stable when working
  • applicable for automobile, industrial control and other areas
Make an inquiry
Data Sheet

Product Description

Coil Volt.

12VDC/24VDC (Rated)

15.6VDC/31.2VDC (Max.)

Coil Power

2.4W

Coil Resistance

60Ω/240Ω (Q±10%)

Pickup Volt.

7.8VDC/15.6 VDC (max.)

Release Vol.

1.2VDC/2.4 VDC (min.)

Operate Time

≤10ms

Release Time

≤5ms


CONTACT RATING

Contact Form

1H(SPSTNO)

Contact material

AgSnO2

Contact Load (resistive)

200A/14VDC

Max. Switching Voltage

40VDC

Max. Switching Current

200A

Max. Switching Power

1680W

Contact Resistance

≤30mΩ                        Item 4.12 of IEC 61810-7

Electrical Endurance

1*105                           Item 4.30 of TEC 61810-7

Mechanical Endurance

1*106                           Item 4.31 of TEC 61810-7

Message

Related products

150A High Power Relay

KKA-E150 150A Relay

Click to Learn More

150A Automotive Relay

KKA-C150 150A Automotive Relay

Click to Learn More

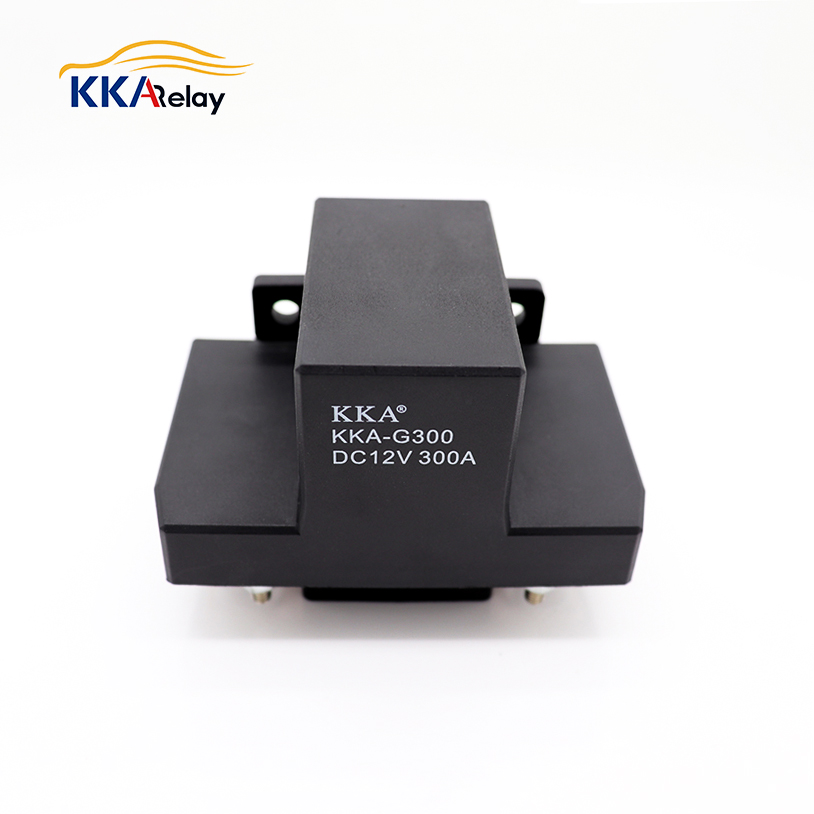

300A Automotive Relay
