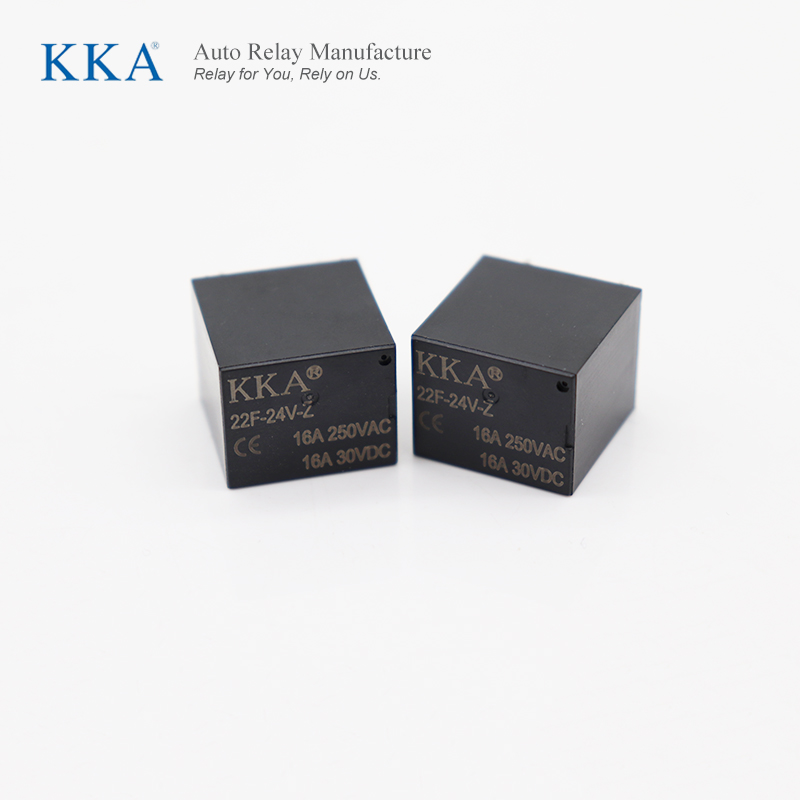

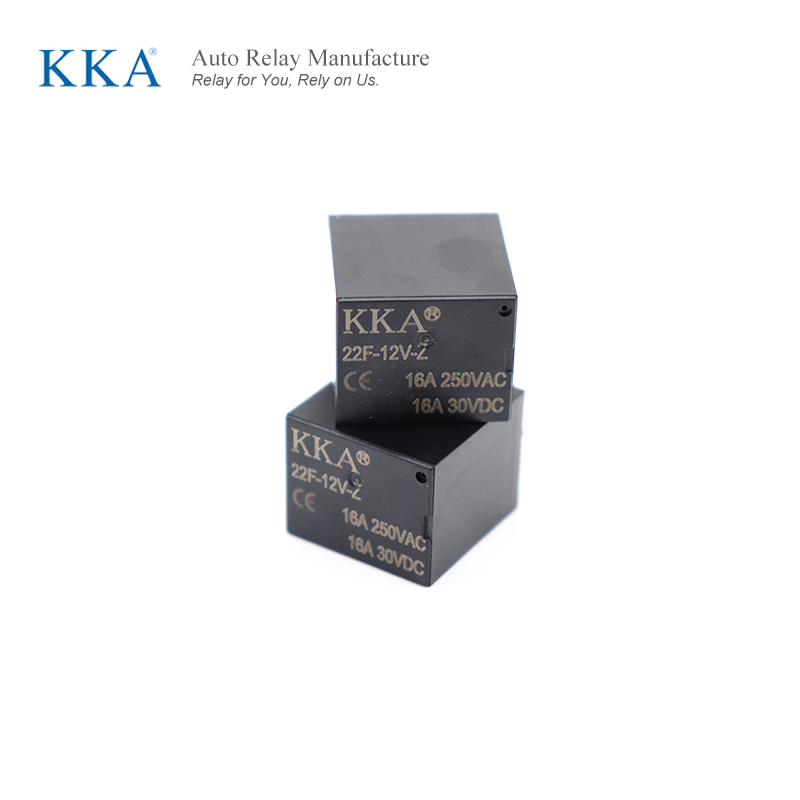

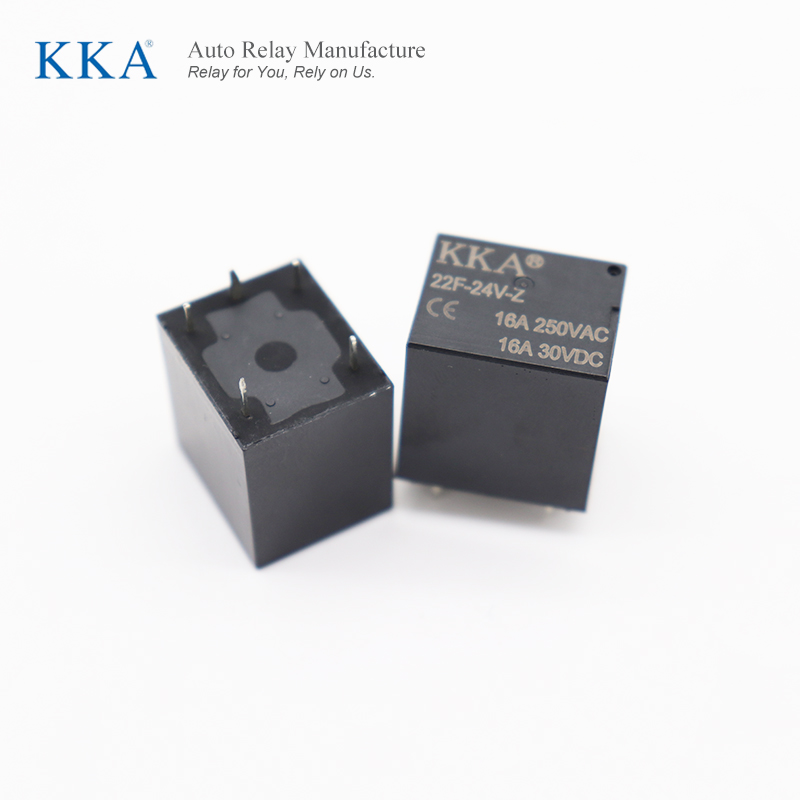

JQC-22F 16A PCB Mini Relay
JQC-22F 16A PCB Mini Relay
JQC-22F 16A PCB Mini Relay
JQC-22F 16A PCB Mini Relay
JQC-22F 16A PCB Mini Relay
JQC-22F 16A PCB Mini Relay

Features

  • up to 16A switching load
  • 1A & 1C two forms
  • PCB installation terminal
Make an inquiry
Data Sheet

Product Description

Relay module

JQC-22F relay (SRU relay)

Coil voltage

DC: 5V 6V 9V 12V 18V 24V

Contact form

SPST-NO (1H Form  A )-4 pins

Contact Material

Silver Alloy

Pin

4 Pin

Contact rating

16A 250VAC 16A 30VDC

Coil Power

0.36W

Size

20.3mm*16.6mm*20.2mm(L*W*H)
