TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A
TSMC Chip Solid State Relay DA/DD/AA Single phase/Three Phase SSR 8A 10A 25A 40A 50A 60A 80A 90A 100A 120A 150A 200A

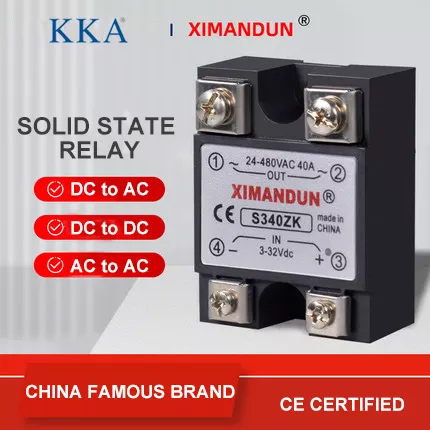

Features

  • 8A-200A switching load available
  • DC to AC/ DC to DC/ AC to AC three modes
  • use TSMC chip to guarantee high performance
Make an inquiry
Data Sheet

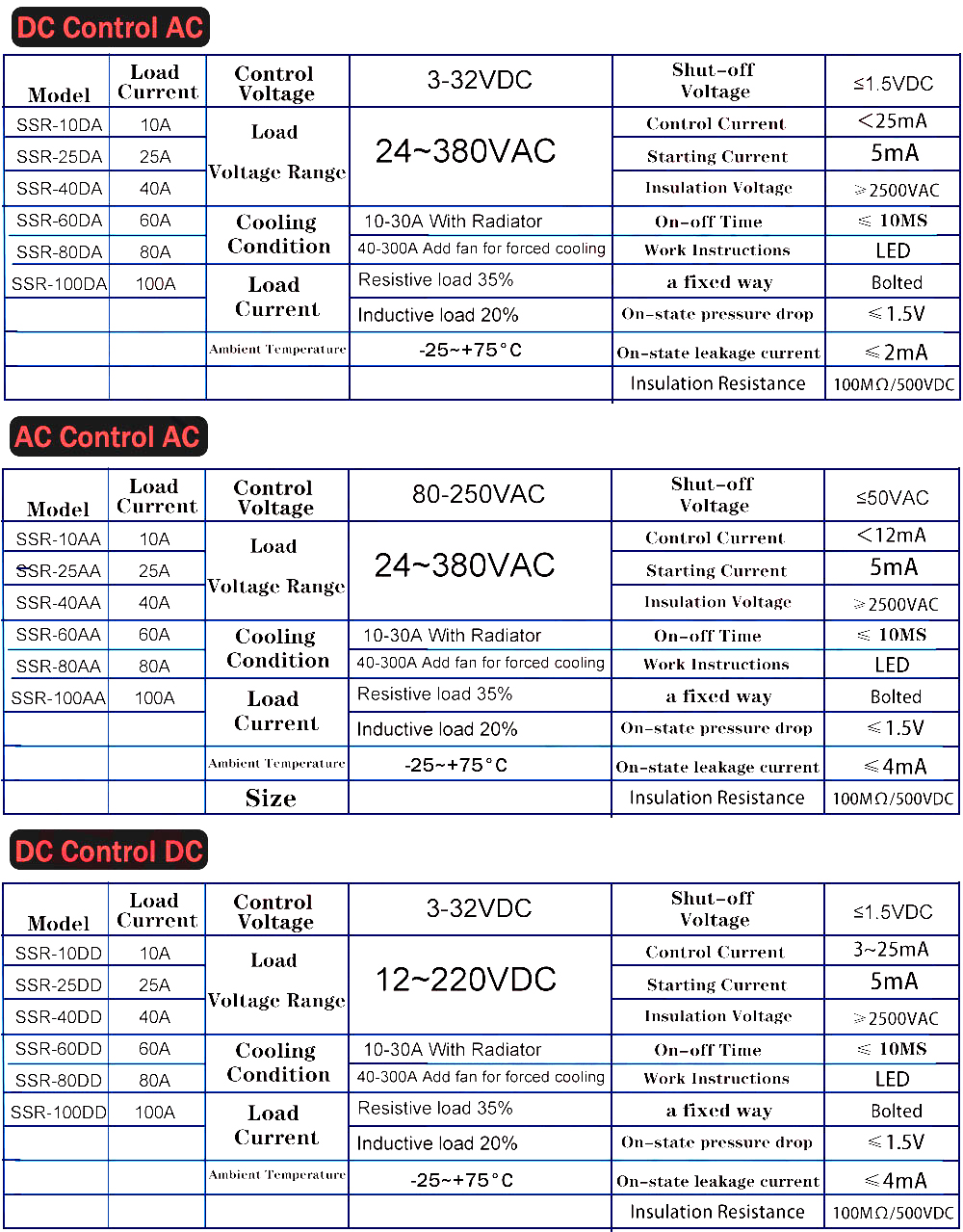

Product Description



Product

SSR 8A-200A

Control

DC to AC AC to AC DC to DC

Load Current

8A 10A 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A 100A 110A 120A 150A 180A 200A

Input Voltage/Control Voltage

3~32VDC/70~280VAC/24~480VAC

Max Input Current

12mA

Must Operation Voltage

2.8VDC/50VAC/2VDC

Must Release Voltage

1.5VDC/70VAC/3VDC

Output Voltage

24-480VAC/5~220VDC

Peak Voltage

800V

Operation Temperature

-30℃ to 80℃

Max off-state leakage current

2mA

Max on-state voltage drop

1.5V

Dielectric strength

2500V

Certificates

CE

Message

Related products

JQX-21F T93 30A 4pin/5pin PCB Power Relay

Click to Learn More

TSMC Chip Solid State Relay DA Single phase SSR 40A 60A 75A 80A 100A 120A 150A 200A 220A 250A 300A 340A 500A

40A-500A KKA-SR Solid State Relay Single phase SSR TSMC Chip

Click to Learn More

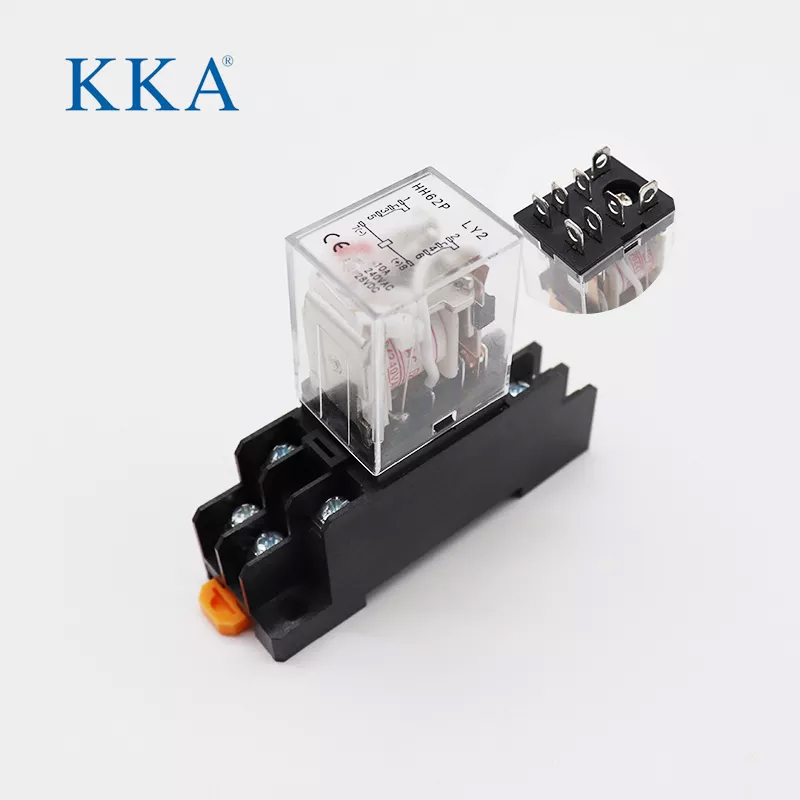

KKA-HH62P (LY2) General Purpose Relay 8 Pins, Electromagnetic Relay JQX-13F
