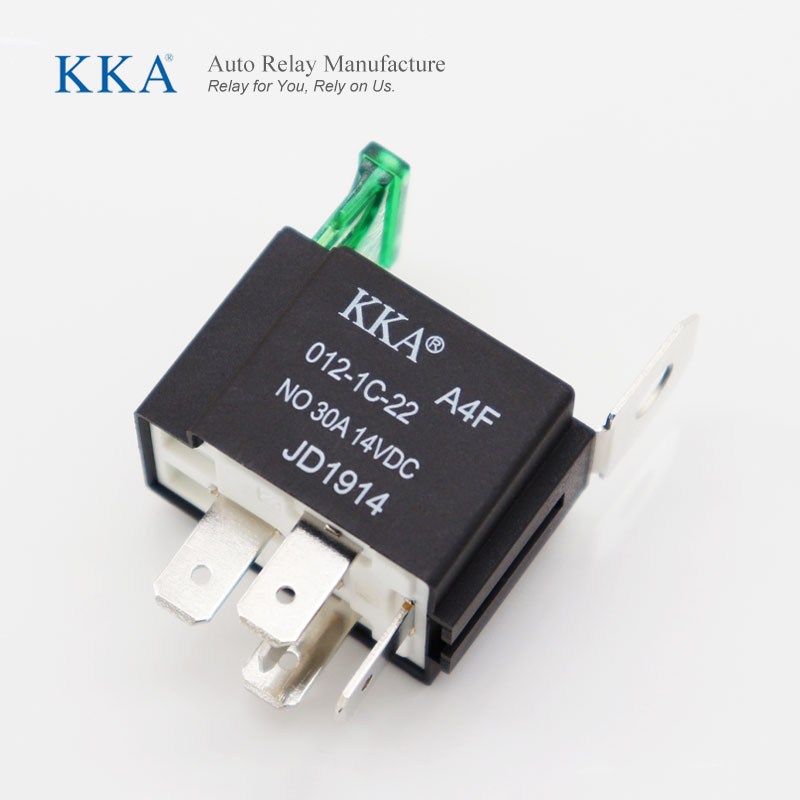

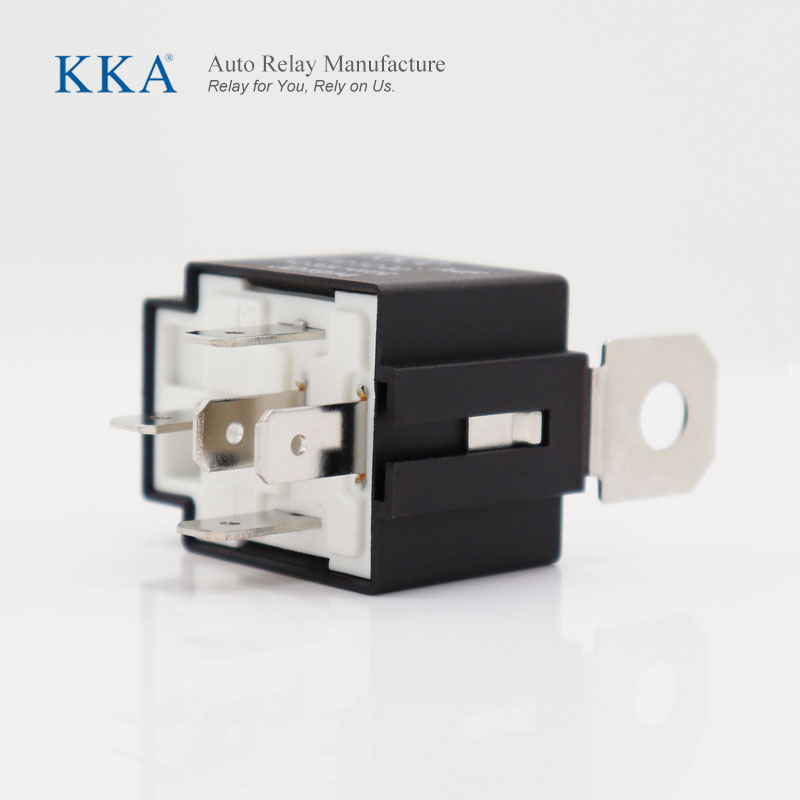

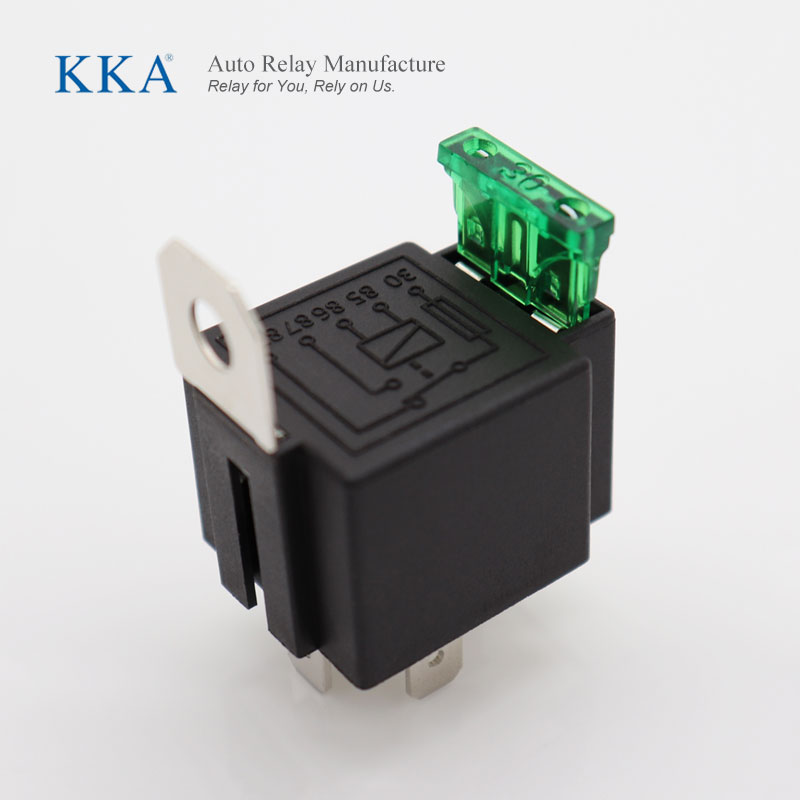

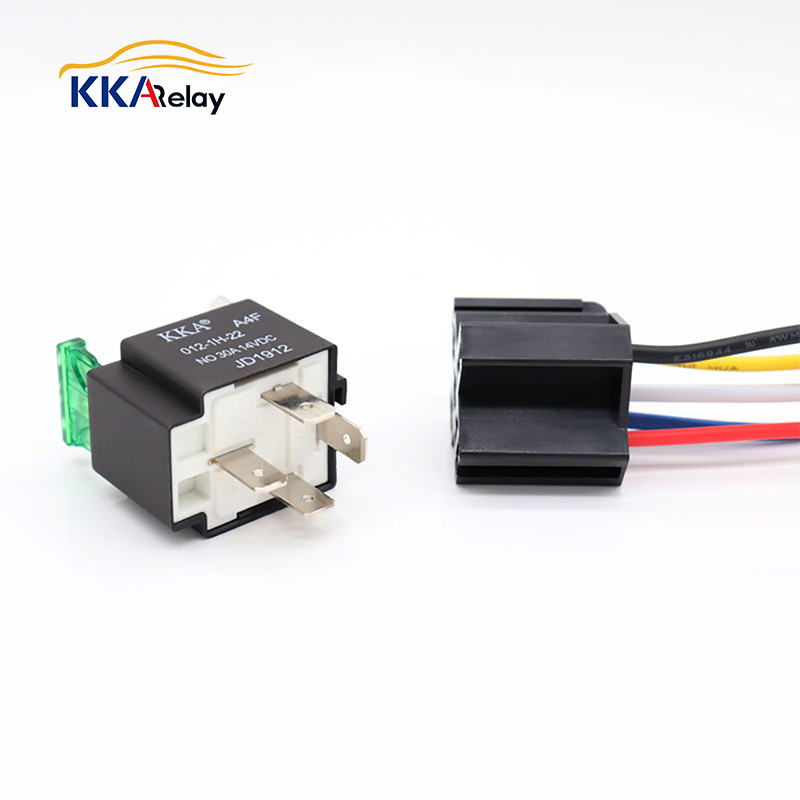

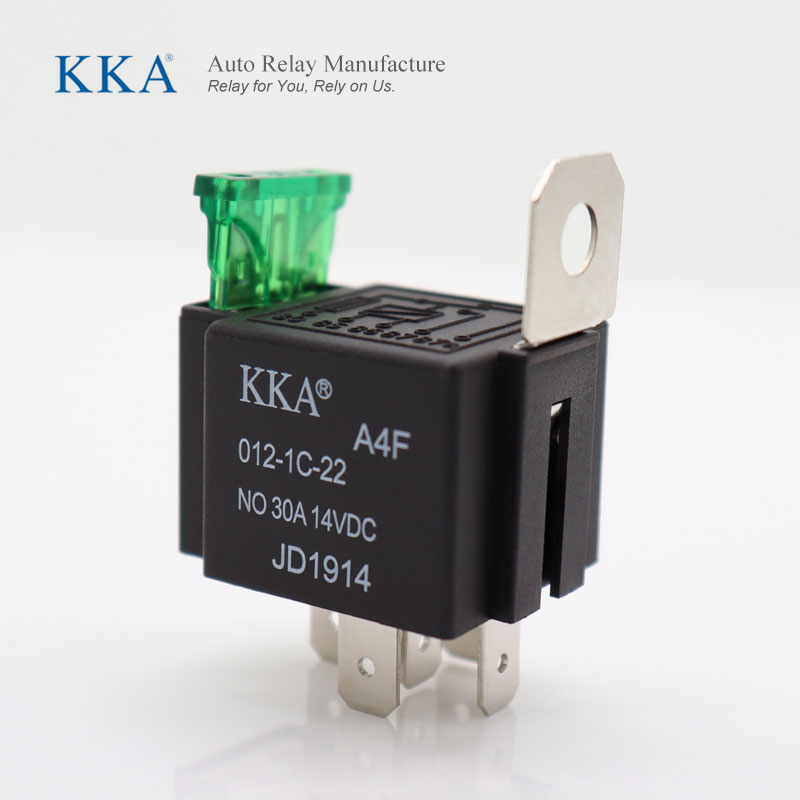

30A Relay with fuse
30A Relay with fuse
30A Relay with fuse
30A Relay with fuse
30A Relay with fuse
30A Relay with fuse
30A Relay with fuse

Features

  • 30A/40A switching capability
  • Normal Open & Switching forms
  • Socket terminal & PCB solder for option
  • Terminals standard complies with ISO 7588 PART 1
Make an inquiry
Data Sheet

Product Description

COIL RATING

Coil Volt.

12VDC/24VDC

Coil Power

1.8W

Coil Resistance

80Ω/320Ω (Q±10%)

Pickup Volt.

8 VDC/16VDC (max.)

Release Vol.

1.2 VDC/2.4VDC (min.)

Max. Coil Volt.

20.2VDC/40.5VDC    under     23℃

15.7VDC/31.5VDC    under     85℃


CONTACT RATING

Contact Form

1A, 1B, 1C

Contact material

AgSnO2

Contact Load (resistive)

13.5VDC

Contact Capacity

NO: 30A/14VDC        20A/14VDC

Electrical Endurance

1*105                           Item 4.30 of TEC 61810-7

Mechanical Endurance

1*106                           Item 4.31 of TEC 61810-7
